PB1400THW-HL (Market Guide Price: RMB 175,800.00)

Main Technical Parameters and Performance:

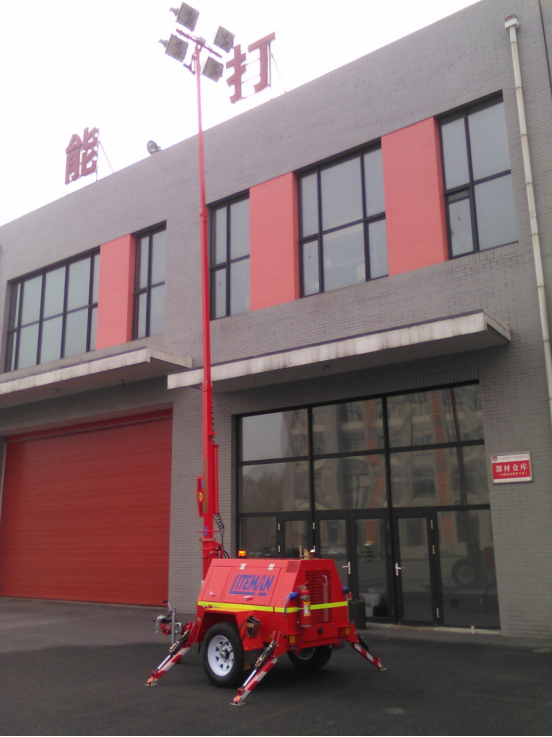

1. Vehicle body size: length, width and height are 4.57m×1.75m×1.9m, the height of the lighthouse reaches 9.4m (can be increased to 10 meters, the cost is RMB 5,000 higher)
2. Weight: ≥1150 kg
3. Lamps: square, lamp head size: 380mm x 340mm; alloy die-cast aluminum structure, lamp switch can be independently operated, central control set control panel
4. Number of lights: 41,000 W metal halide lamp
5. Optical flux: 440,000 lm
6. Irradiation radius: reach 220 meters

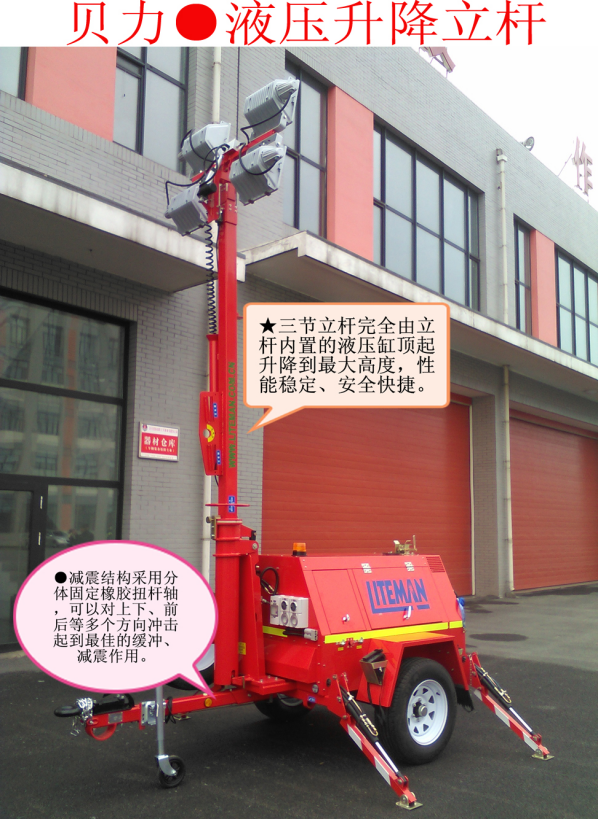

7. Vertical rod structure: 3 sections of hydraulic lifting; lifting vertical rod must lie down in the process of transportation or storage, to reduce the risk of damage;
8. The vertical rod can rotate 360°, and the lamp assembly is 120° electric flip, so that the light source changes the projection angle arbitrarily, and all-round lighting without dead angle.
9. Support fixation: 4 wind resistant legs are hydraulic control; the front guide wheel can be folded in parallel.
10. tires: type 225 / 70R16 large off-road tires
11. Shock-absorbing axle: rubber torsion rod shaft adopts split fixed mode
12. Wind resistance: level 8
13. Color: white electrostatic spraying of the whole machine (or user-specified color)
14. Rated voltage: 220v
15. Engine: an internationally renowned brand (Kubota or Perkins), with a power of ≥9.36KW.
16. Generator: power reaches 7.3 KW, insulation level: H
17. Rated speed: 1,500 RPM
18. Number of cylinders: 3
19. Cooling method: water cooling
20. Engine protection device: with oil and water temperature protection device
21. Fuel used: diesel oil
22. Fuel tank capacity: 100L
23. Working time: more than 37 hours
24. Backup electrical interface: 220V AC backup socket
25. Vehicle body structure: reinforce the vehicle body design of thickened steel, traction rod long-distance transportation can be decomposed and boxed.
